MIL-PRF-16552 Filter, Air Environmental Control System, Cleanable, Impingement \(High Velocity Type\)This specification covers air filters of permanent and cleanable types. They are for use in filtering dust and lint from the air passing through ventilating, heating and cooling systems.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16


MIL-PRF-16552F
±1/8"
All tolerances are +/- 1/16 inch except as noted.

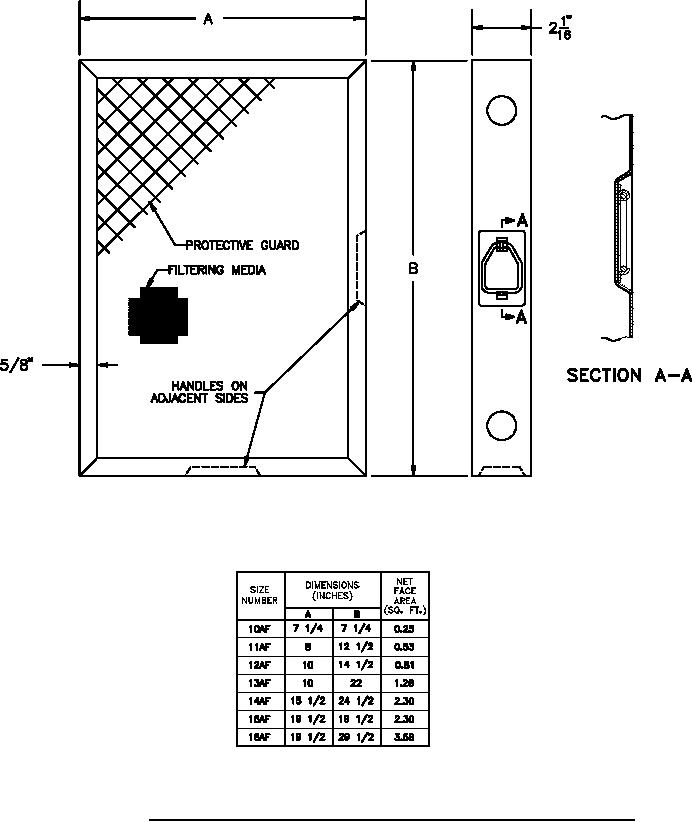

FIGURE 1.
Sizes and physical interface dimensions of air filters.
10
